141323 Oil Pan for Cummins ISB / QSB engines

Name: 141323 Oil Pan for Cummins ISB / QSB engines
Brand: PAI
SKU: 141323
Price: 316.29 USD
Availability: InStock

(No reviews yet) Write a Review

$316.29

Current Stock:

Quantity:

Description

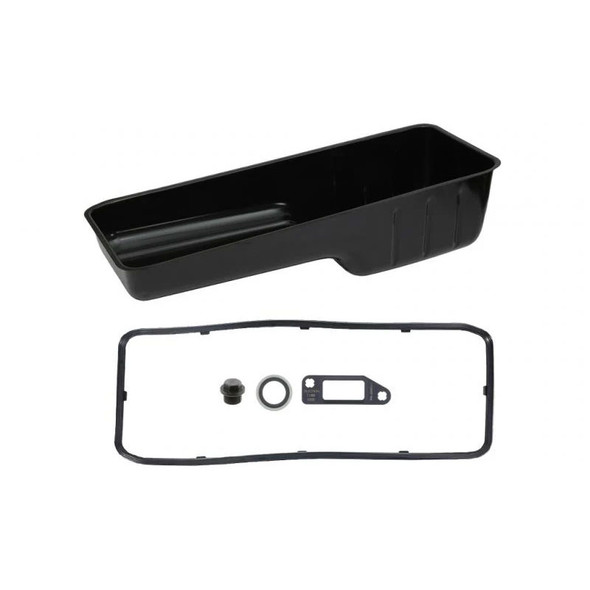

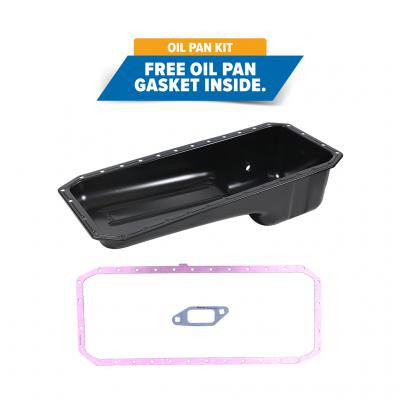

This replacement oil pan fits Cummins ISB / QSB diesel engines, features a 15 quart capacity and replaces OE oil pan 3958209 and gasket 4337596.
Steel construction with prominent sealing ridges to ensure a perfect seal between pan, gasket, and block
EDP, (electro-deposit primer) protective coating; this primer protects pans during transport and storage and adds a layer of corrosion resistance after priming and painting. After fabrication and cleaning, the steel pans are then electrically charged before being dipped into a primer bath. The electric charge draws an even layer of primer to all surfaces where it then bonds to create an even, protective coating.
WEIGHT: 16.98 LBS

Product Attributes:

Baffled	No
Capacity (quart)	15
Color/Finish	Black
Crank Shaft Wiper Included	No
Drain Plug Included	No
Drain Plug Thread Size	M18x1.25
Gasket or Seal Included	Yes
Installation Hardware Included	No
Material	Steel
Mounting Hole Quantity	32
Oil Level Sensor Port	No
Pick Up Tube Included	No
Product Dimensions (LxWxH)	31.5 x 12.88 x 8 inches
Sump Location	Front/Rear
Sump Style	Wet
Total Ports	2
